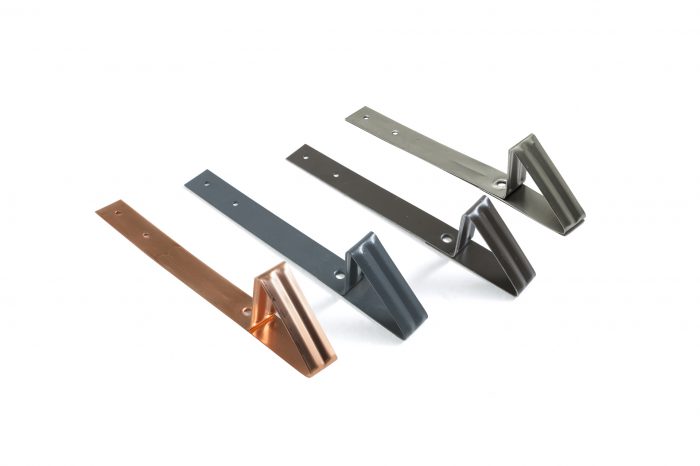

Snow Stop Copper – ACCESSORY

Material: copper tape
– Length: 270 mm. +/- 3 Mm
– Width: 30 mm. +/- 2 Mm
– Protrusion height: 60 mm. +/- 2 Mm
– Hypotenuse height: 85 mm. +/- 2 Mm
– Thickness: 1.2 Mm. +/- 0.5 Mm
– Diameter n° 2 holes of 5 mm +/- 1 mm.
– Diameter n° 1 hole of 8 mm. +/- 1 Mm
– Breaking strength hole 8 mm. :> 130 N
– Ultimate tensile stress, kept caulking, hole-zone 8 mm.: > 1500 N
